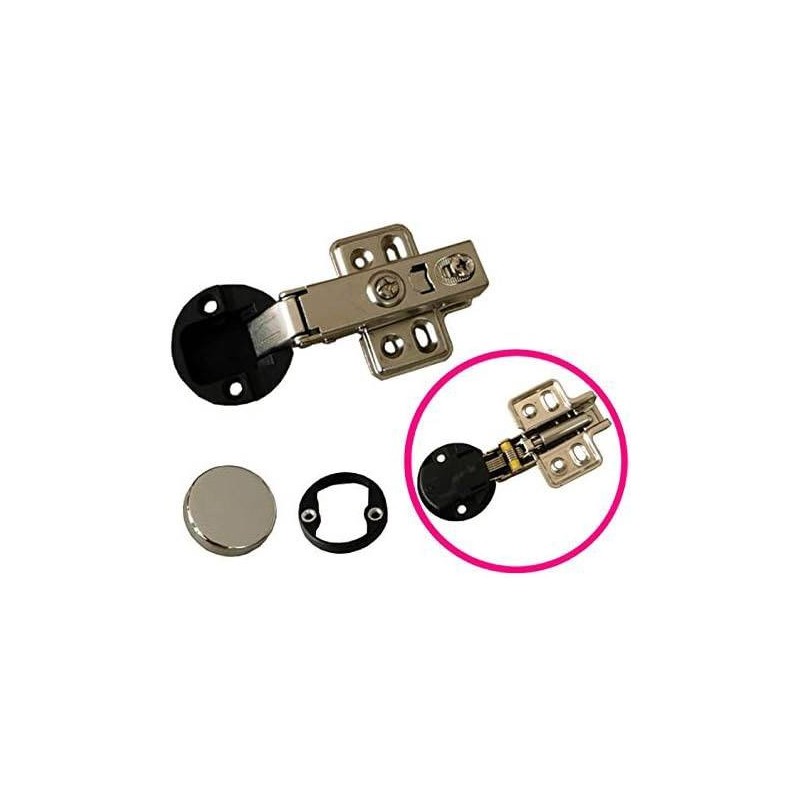

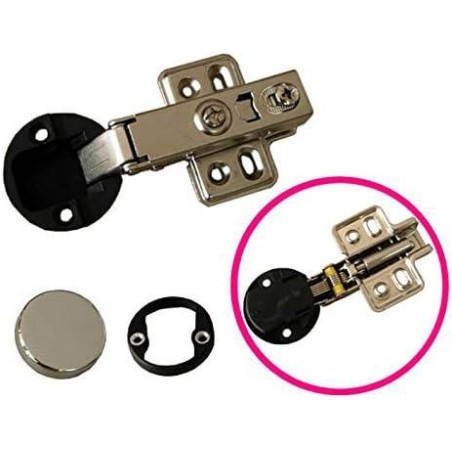

Dia 1.5inches (35mm) EU/European Style Full Overlay Hydraulic Soft-close Hinge for Glass door
$7.99
European Style Full Overlay Hydraulic Soft Close Hinge
For thickness 4-7mm (5/32 - 17/64 inches)Glass Door,
100 Degree Open,
Insparable style, with Screws Included
All Mental Construction Satin Nickel Finish,
Round Cover is in Chrome, If you need it in another color, it needs custom make, MOQ 1000pcs for another color.
Security policy
This website never save customer info neither payment info.
Delivery policy
Order will be ready to ship within 2 business days after payment received
Return policy
Need approval before return, Please contact us first.
European Style Hydraulic Soft-Close Hinge
Cabinet Hinge for Glass cabinet Door
Price for 1 piece
Full Overlay
100 Degree Open,
Insparable style, with Screws Included
A=1-1/2inches (35mm), B=1-1/2inches (37mm), C=3/64inches (1mm)
D =14+F-E (for full overlay and glass door)
E F| 3mm  4mm  5mm  6mm 7mm
0mm| 17mm 18mm 19mm 20mm 21mm
2mm| 15mm 16mm 17mm 18mm 19mm
