- Out-of-Stock

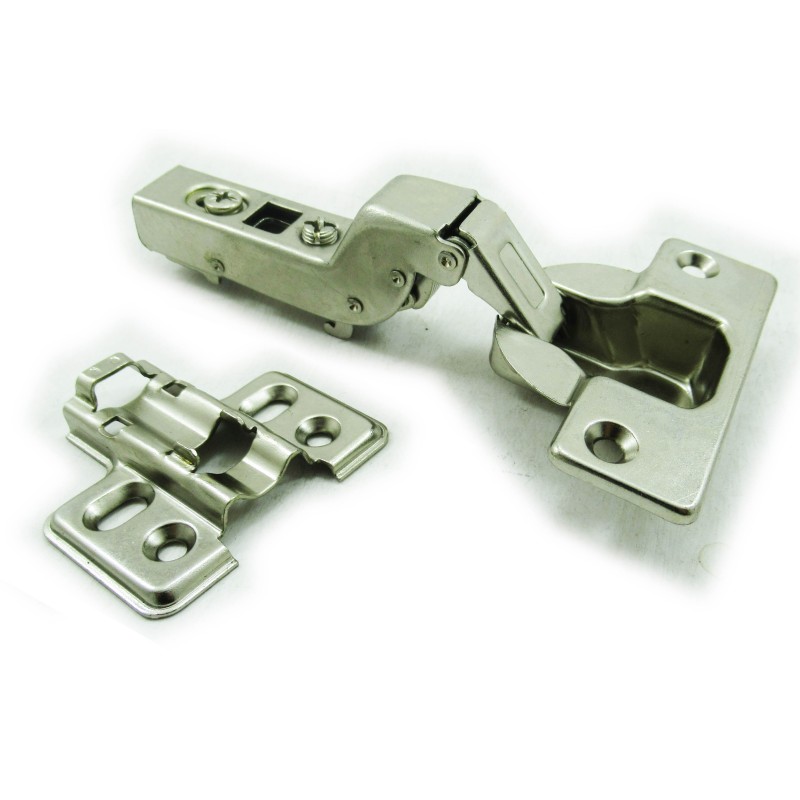

Dia 40mm 95 Degree Clip-on tip-on Insert Style soft-close hydraulic Cabinet hinge
$9.99
Dia 40mm 95° tip-on Insert Style soft-close hydraulic hinge
European Style Hydraulic Soft Close Hinge, Insert style
95 Degree Open,Â
Clip-on style, with Screws Included
All Mental Construction Satin Nickel Finish
Security policy
This website never save customer info neither payment info.
Delivery policy
Order will be ready to ship within 2 business days after payment received
Return policy
Need approval before return, Please contact us first.
One piece of European Style Hydraulic Soft-Close Hinge
Cabinet Hinge for Wooden cabinet Door
Cabinet Hinge for Wooden cabinet Door
Options as following, All comes by one piece
(Price for 1 piece)
95 Degree Open,
Clip-on style, with Screws Included
A=1-5/8inches (40mm) B=1-1/2inches (37mm) C=3/64inches (1mm)
D =2+E-F (for insert and glass door)
 E \ F| 3mm  4mm  5mm  6mm  7mm
2mm| -1mm  -2mm  -3mm  -4mm  -5mm
4mm|  1mm  0mm  -1mm  -2mm  -3mm
All Mental Construction Chrome Plated Finish
Screw distance of head is 2-1/8 inches (53mm)
Diameter of cup/hole is 1-5/8 inches (40mm)
(Remark: a cabinet door needs at less 2 hinges for fitting up)
