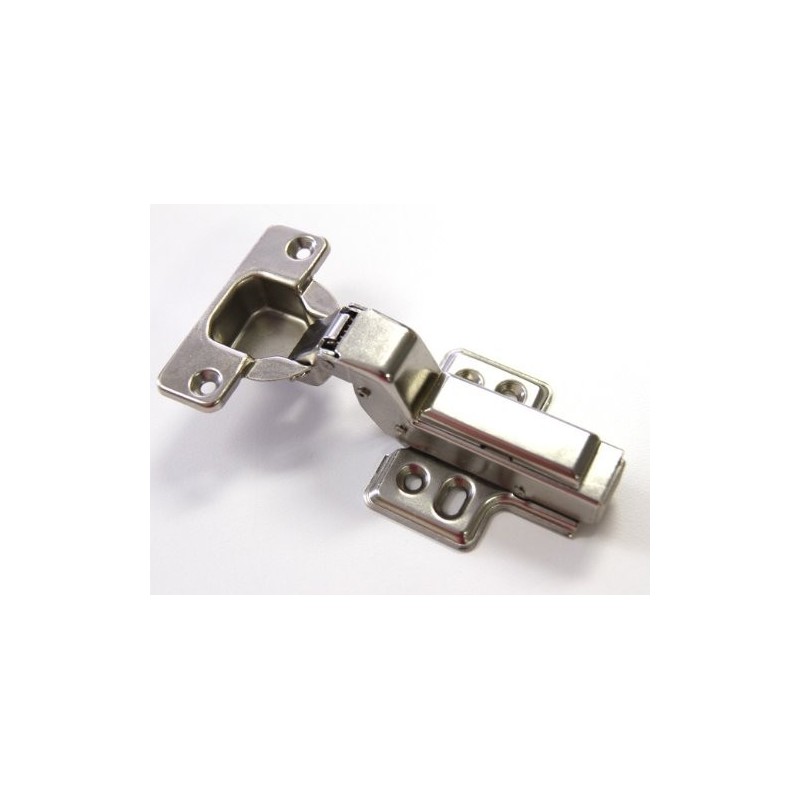

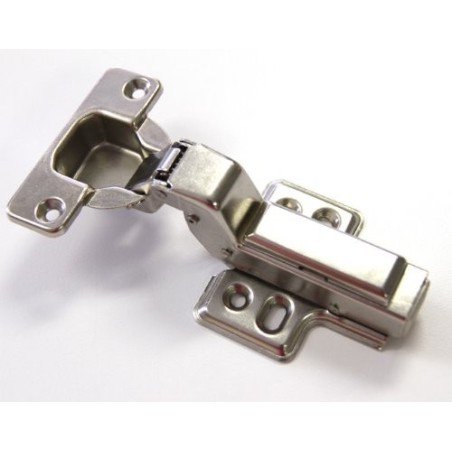

Dia 1.5inches(35mm) Cup Size (Hole) Euro Style Hydraulic Soft Close Clip-on Fast-Mounted Hinge for Kitchen Morden Simple Cabinet
$7.00
Insert Silence-Close Cabinet Hinge: Features hydraulic soft-close technology that allows cabinet doors to close quietly and smoothly without slamming
105 Degree Opening Angle: Provides wide opening capability for easy access to cabinet contents with full range of motion
Easy Clip-On Installation: Fast-mounted design with mounting screws included for quick and convenient installation without additional fasteners
Heavy Duty Construction: Built with durable all-metal construction designed to support thick wooden cabinet doors with reinforced supporting arms
Standard Cup Size Compatibility: Designed for door cup or hole diameter of 1.5 inches (35mm) following European style cabinet specifications
Long-Lasting Hydraulic System: Steel hydraulic mechanism rated for more than 100,000 open and close cycles ensuring reliable long-term performance
Adjustable After Installation: Features full adjustability after mounting allowing precise alignment and positioning of cabinet doors
Security policy
This website never save customer info neither payment info.
Delivery policy
Order will be ready to ship within 2 business days after payment received
Return policy
Need approval before return, Please contact us first.
European Style Insert Hydraulic Soft-Close Hinge
100 Degree Open,
Fast Fitting style, with Screws Included
Price for one (1pc)
All Mental ConstructionSatin Nickel Finish
Cup size 1.5 inches (35mm)
(Remark: a cabinet door needs at less 2 hinges for fitting up)
Special:
Brass Hydraulic System is built into the Hinge, Cabinet Door closs softly because the Hydraulic play the buffer role.
Our Hydraulic is made from steel, It can work more than 100,000 times open and close
Long arm European style cabinet hinge.
Hydraulic Soft Close Silent System is built into the hinge, cabinet door will close slowly even you slam the door!
Reinforce supporting arms.
Made for 3/4inches door and side panel.
Hinge opens 105 degrees and features full adjustability after installation.
Hinge fits into a inchescupinches drilled into the back side of the cabinet door. The cup diameter is 35mm (1-3/8inches).
For cabinets with half overlay doors and no face frame (frameless cabinet).
Hinge is made from steel and is nickel plated.
Half overlay doors overlay less than 1/2 the thickness of the side panel that they are mounted to. Half overlay doors are also known as inchesBack to Backinches doors. These doors are hinged to opposite sides of the same side panel. A typical installation for this hinge and mounting plate is an overlay of 8mm for each door. An 8mm overlay on a 3/4inches side panel will leave a 3mm gap between the doors. The bore distance for an 8mm overlay is 4mm (bore distance is the distance from the edge of the door to the edge of the cup that is drilled in the back of the door).
Clip-on mounting plate included. The hinge and the mounting plate attach to each other by snapping together without the use of additional fasteners.
100 Degree Open,
Fast Fitting style, with Screws Included
Price for one (1pc)
All Mental ConstructionSatin Nickel Finish
Cup size 1.5 inches (35mm)
(Remark: a cabinet door needs at less 2 hinges for fitting up)
Special:
Brass Hydraulic System is built into the Hinge, Cabinet Door closs softly because the Hydraulic play the buffer role.
Our Hydraulic is made from steel, It can work more than 100,000 times open and close
Long arm European style cabinet hinge.
Hydraulic Soft Close Silent System is built into the hinge, cabinet door will close slowly even you slam the door!
Reinforce supporting arms.
Made for 3/4inches door and side panel.
Hinge opens 105 degrees and features full adjustability after installation.
Hinge fits into a inchescupinches drilled into the back side of the cabinet door. The cup diameter is 35mm (1-3/8inches).
For cabinets with half overlay doors and no face frame (frameless cabinet).
Hinge is made from steel and is nickel plated.
Half overlay doors overlay less than 1/2 the thickness of the side panel that they are mounted to. Half overlay doors are also known as inchesBack to Backinches doors. These doors are hinged to opposite sides of the same side panel. A typical installation for this hinge and mounting plate is an overlay of 8mm for each door. An 8mm overlay on a 3/4inches side panel will leave a 3mm gap between the doors. The bore distance for an 8mm overlay is 4mm (bore distance is the distance from the edge of the door to the edge of the cup that is drilled in the back of the door).
Clip-on mounting plate included. The hinge and the mounting plate attach to each other by snapping together without the use of additional fasteners.
HK1517
20 Items
Data sheet
- Material
- Steel
- Product Type Name
- HARDWARE_HINGE
Specific References
- UPC
- 799928952323
Comments (0)
No customer reviews for the moment.
Insert Silence-Close Cabinet Hinge: Features hydraulic soft-close technology that allows cabinet doors to close quietly and smoothly without slamming
105 Degree Opening Angle: Provides wide opening capability for easy access to cabinet contents with full range of motion
Easy Clip-On Installation: Fast-mounted design with mounting screws included for quick and convenient installation without additional fasteners
Heavy Duty Construction: Built with durable all-metal construction designed to support thick wooden cabinet doors with reinforced supporting arms
Standard Cup Size Compatibility: Designed for door cup or hole diameter of 1.5 inches (35mm) following European style cabinet specifications
Long-Lasting Hydraulic System: Steel hydraulic mechanism rated for more than 100,000 open and close cycles ensuring reliable long-term performance
Adjustable After Installation: Features full adjustability after mounting allowing precise alignment and positioning of cabinet doors
