Rafes Stainless Steel Security Mortise Lock set For Wood/metal Gate Door
$80.00
Rafes #304 Stainless Steel Security Mortise Lock set For Wood/metal Gate Door
Commercial class entry door lock
Security policy
This website never save customer info neither payment info.
Delivery policy
Order will be ready to ship within 2 business days after payment received
Return policy
Need approval before return, Please contact us first.
Suit for Home gate/door,apartment, hotel, office and commercial building door
High quality, good finish.
60x85mm large lock-case, copper gourd-shaped cylinder with 3 keys,
#304 stainless steel panels and handle,
cylinder and handling are easy to dissemble for replace.
Spring Latch is Reversible for left and right handle.
Keep the entry doors on your commercial or residential property secure. The lock features a Stainless steel for durability, and a deadbolt offers excellent security for your entry door.
Specifications:
- Exterior: stainless steel with cylinder recess, 10-1/4inches x 2inches stainless steel plate with two set screws. Two piece 5inches stainless steel handle.
- Cylinder: 2-3/4inches long solid brass, 6 pin with 2 keys.
- Strike: 1/2inches x 1inches x 5/8inches thick, 5/8inches curved lip.?Conforms to ANSI spec., A115.1.
- Bolt: 3/4inches x 1-3/4inches x 3/8inches thick
- Door Thickness: 1-5/8inches to 2-1/4inches standard.
- A=3-1/4inches (82mm) B=6-3/4inches (170mm)
- C=1inches (25mm)Â Â Â D=1-3/4inches (43mm)
- E=1/2inches (14mm)Â Â Â F=1-1/4inches (32mm)
- G=2-5/8inches (70mm) H=1-3/4inches (43mm)
- I=2-1/8inches (54mm)Â Â J=1-1/4inches (32mm)

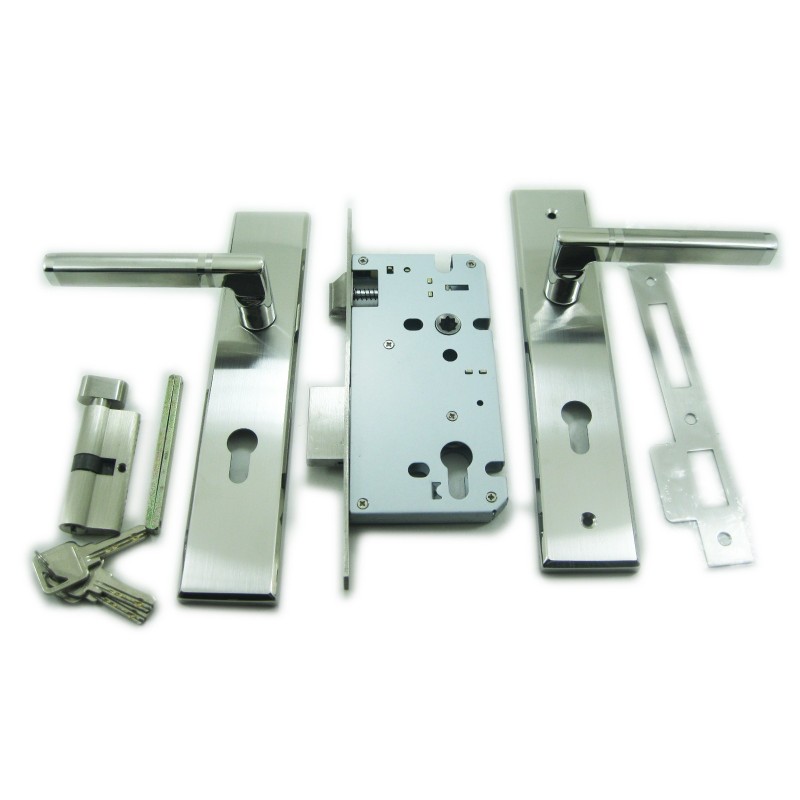

Each package contains:
one inside handle, outside handle, spindle, mortise lock assembly, strike plate, key cylinder with 3 keys and installation screws
as picture.
