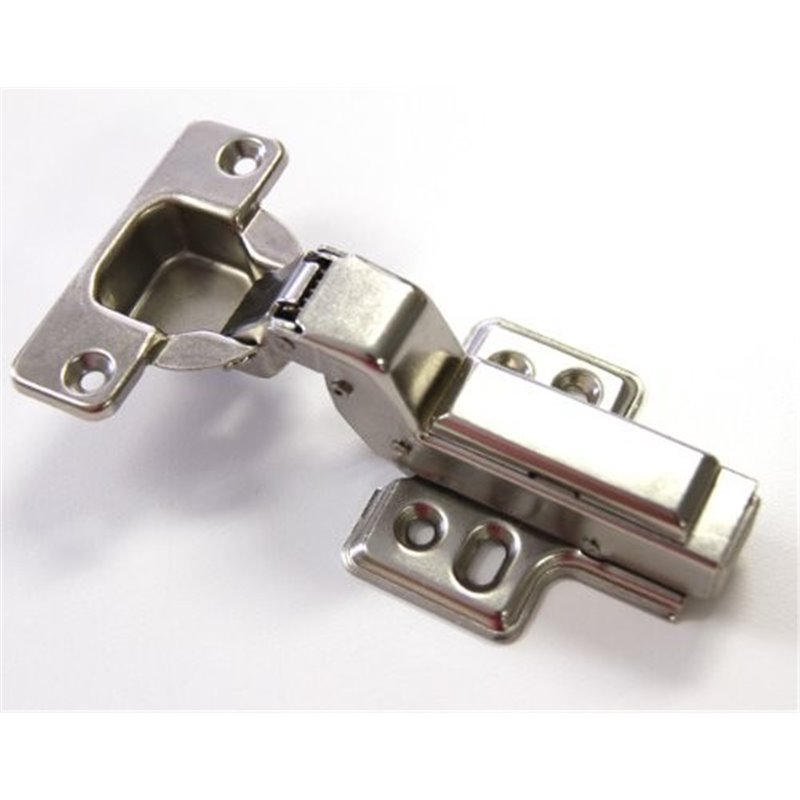

Dia 1.5inches (35mm) EURO style Cabinet Hydraulic Soft Close Inset Clip-on Hinge

European Style Full Overlay Brass Hydraulic Soft-Close Hinge
105 Degree Open,
Fast Fitting style, with Screws Included

Price for one (1pc)

All Mental ConstructionSatin Nickel Finish
Cup size 1.5 inches (35mm)
(Remark: a cabinet door needs at less 2 hinges for fitting up)

Special:
Brass Hydraulic System is built into the Hinge, Cabinet Door closs softly because the Hydraulic play the buffer role.
Our Hydraulic is made from steel, It can work more than 100,000 times open and close

Long arm European style cabinet hinge.
Hydraulic Soft Close Silent System is built into the hinge, cabinet door will close slowly even you slam the door!
Reinforce supporting Arms.
Made for 3/4inches door and side panel.
Hinge opens 105 degrees and features full adjustability after installation.
Hinge fits into a inchescupinches drilled into the back side of the cabinet door. The cup diameter is 35mm (1-3/8inches).
For cabinets with full inset doors and no face frame (frameless cabinet).
Hinge is made from steel and is nickel plated.
Reveal: a 3mm bore distance (distance between the edge of the door and the edge of the 35mm cup drilled in the back of the door) will produce a reveal of 1mm. The reveal is the gap between the edge of the door and the cabinet side panel.
Clip-on mounting plate included. The hinge and the mounting plate attach to each other by snapping together without the use of additional fasteners.
