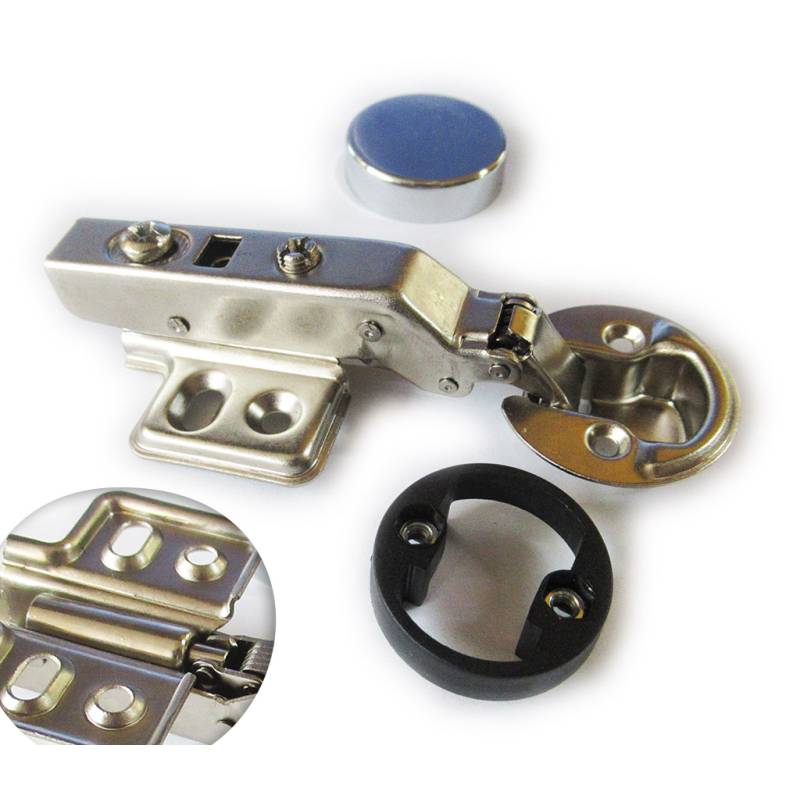

Dia 1inches/26mm Hole Euro Hydraulic Full Overlay Soft Close Hinge for Cabinet Glass Door
$7.99
European Style Full Overlay Hydraulic Soft Close Hinge
For thickness 4-7mm (5/32 - 17/64 inches)Glass Door,
95 Degree Open
Insparable style, with Screws Included?
All Mental Construction Satin Nickel Finish,
Round Cover is in Chrome, If you need it in another color, it needs custom make, MOQ 1000pcs for another color.
Security site, never stored your payment info
Fast ship, order to be shipped out within 2 days
End users are able to return for refund or exchange.
European Style Hydraulic Soft-Close Hinge
Cabinet Hinge for Glass cabinet Door
For Dia 26mm (1.05 inch) hole
95 Degree Open,
Insparable style, with Screws Included
A=1inches (26mm) B=1-1/2inches (37mm) C=3/64inches (1mm)
D =12 F-E (for full overlay and glass door)
E F| 3mm 4mm 5mm
0mm| 15mm 16mm 17mm
2mm| 13mm 14mm 15mm
G=0.19-0.28 inches (5-7 mm),
All Mental Construction Chrome Plated Finish
Cup size 1.05inch (26mm)
(Remark: a cabinet door needs at less 2 hinges for fitting up)
Special:
Steel Hydraulic System is built into the Hinge, Cabinet Door closs softly because the Hydraulic play the buffer role.
Our Hydraulic is made from steel, It can work more than 100,000 times open and close
HK5500
