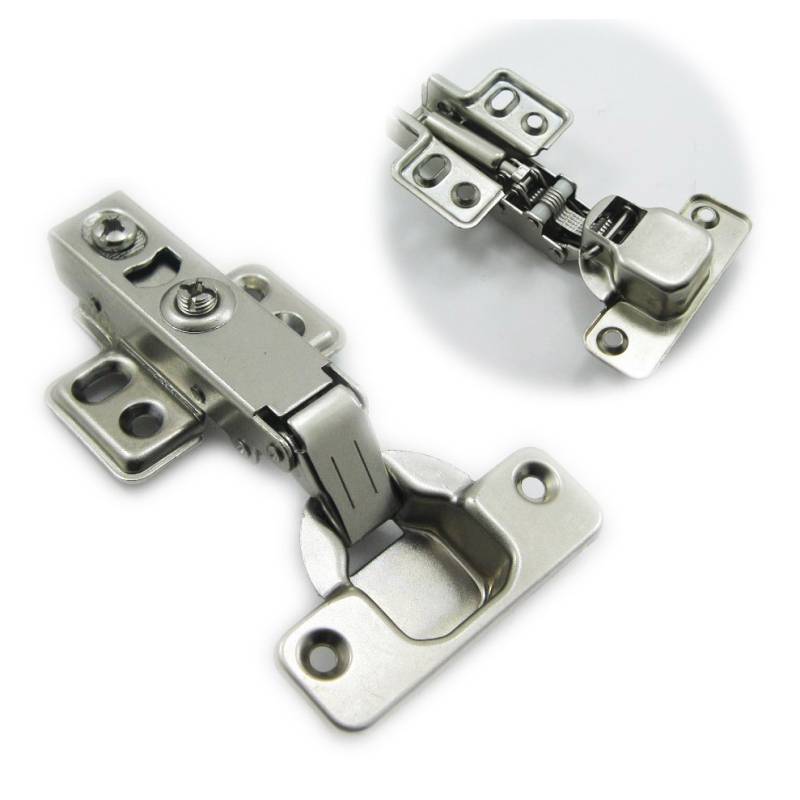

Dia 1.5inches/35mm Hydraulic soft close Full Overlay Hinge for wooden door
$7.99
Dia 1.5inches/35mm Hydraulic soft close Full Overlay Hinge for wooden cabiet door, works for any wood (solid wood, wood frame MDF clipboard)
Security site, never stored your payment info
Fast ship, order to be shipped out within 2 days
End users are able to return for refund or exchange.
European Style Full Overlay Hydraulic Soft-Close Hinge
For Wooden door (Solid wood/MDF board/Clipboard/Wood frame)
105 Degree Open,
with Screws Included
Price for one (1pc)
All Mental Construction Satin Nickel Finish
Cup size 1.5 inch (35mm)
(Remark: a cabinet door needs at less 2 hinges for fitting up)
A=1-1/2inches (35mm) ?B=1-1/2inches (37mm) ?C=3/64inches ?(1mm)
D =19+F-E (for full overlay and glass door)
E F| 3mm 4mm 5mm 6mm 7mm?
0mm| 17mm 18mm 19mm 20mm 21mm
2mm| 15mm 16mm 17mm 18mm 19mm
Special:
Hydraulic System is built into the Hinge, Cabinet Door close softly because the Hydraulic play the buffer role.
Our Hydraulic is made from steel, It can work more than 100,000 times open and close
